Product Description:
Description Of The NTC Thermistor Blue Film Chip
NTC Thermistor chip is core element of thermistor,
resistance,resistance tolerance,Beta value, Beta tolerance, size,
etc. can be customized based on customers' requirements. Regarding
normal model such as 10K3950 is very cheap and stocks available,
but price is relatively higher and longer delivery for customized
model or special model such as 5K3470 . Don't worry, price can be
cost down once customized model started mass production for a
couple of months.
Features Of The NTC Thermistor Blue Film Chip
* Ultra-small resistance available
* Ultra-high resistance available
* High precision available such as 0.1%
* Tiny size available
* High beta value available
* Taped package
* Customized available
Application Of The NTC Thermistor Blue Film Chip
* Temperature Measurement Type such as
MF52,MF58,MF59,MF55,MF57,MF51
* Temperature compensation type such as MF11
* Power type inrush current limiter such as MF73,MF73T,MF74,MF75
* Forehead thermometer
* Thermopile
Specification Of The NTC Thermistor Blue Film Chip
MF52 Type NTC Thermistor Chip
● Wide measurement range, fast dynamic response, stable performance
● High precision and fast response speed
| Part No. | Rated Resistance
R25
(KΩ) | B Value
(25/50℃)
(K) | Rated Power(mw) | Dissi. Coef.
(mW/℃) | Thermal time Constant(S) | Operating Temp.(℃) |
MF523100
MF523270
MF523380
MF523470
MF523600
MF523950
MF524000
MF524050
MF524150
MF524300
MF524500 | 0.1-20
0.2-20
0.5-50
0.5-50
1-100
5-100
5-100
5-200
10-250
20-1000
20-1000 | 3100
3270
3380
3470
3600
3950
4000
4050
4150
4300
4500 | ≤ 50 | ≥ 2.0
In Still Air | ≤ 7
In Still Air | -55℃ - +125℃ |
MF55 Film NTC Thermistor Chip
MF55 series film temperature measurement NTC thermistor is a new
product that our company have recently researched, and it is made
by whole-newly technique,and it has the viture of novel
configuration and good security and good coherence. It can be used
in such applications as temperature measurement and control and
compensation.
Resistance
Ohms @25°C | Resistance
Tol. ± % | Beta (K)
25°C - 50°C |
| 10,000 | 1 | 3,380 |
| 10,000 | 1 | 3,380 |
| 10,000 | 1 | 3,950 |
| 10,000 | 1 | 3,950 |
| 50,000 | 1 | 3,950 |
| 50,000 | 1 | 3,950 |
| 100,000 | 1 | 3,950 |
| 100,000 | 1 | 3,950 |
MF57 automobile water temperature sensors' chip
| Model | Rated Resistance R25 | B Value (25/50℃) | Rated Power (W) | Measuring Power (mW) | Themal time Constant (S) | Dissi. Coet. (mW/℃) | Operating Temp (℃) |
| Range(Ω) | Tolerance | Value(Ω) | Tolerance |
| MF57□□□2700 | 220-630 | ±1% ±3% ±5% | 2700 | ±1% ±3% ±5% | 0.3 0.5 | ≤0.5 | ≤60 | 6-13 | -55-+125 |
| MF57□□□3000 | 270-5.1K | 3000 |
| MF57□□□3300 | 270-5.1K | 3300 |
| MF57□□□3600 | 270-5.1K | 3600 |
| MF57□□□3900 | 270-5.1K | 3900 |
| MF57□□□4100 | 330-6.8K | 4100 |
| MF57□□□4300 | 330-6.8K | 4300 |
| MF57□□□4700 | 330-10K | 4700 |
MF51/MF58/MF59 Glass sealed thermistor chip
| Part Number | Resistance
@25C
R25 (K ohm) | Beta value
(K) | Specific Temperature
Point Resistance
Data (ohm) |
| MF58-202□3839(B5/25) | R25:2K ohm | B(5/25C):3839K | R5: 5.06K ohm |
| MF58-502□3470 | R25:5K ohm | B(25/50C):3470K | |
| MF58-502□3950 | R25:5K ohm | B(25/50C):3950K | |
| MF58-103□3380 | R25:10K ohm | B(25/50C):3380K | |
| MF58-103□3435(B25/85) | R25:10K ohm | B(25/85C):3435K | |
| MF58-103□3470 | R25:10K ohm | B(25/50C):3470K | |
| MF58-103□3600 | R25:10K ohm | B(25/50C):3600K | |
| MF58-103□3700 | R25:10K ohm | B(25/50C):3700K | |
| MF58-103□3950 | R25:10K ohm | B(25/50C):3950K | |
| MF58-103□3975(B25/85) | R25:10K ohm | B(25/85C):3975K | |
| MF58-103□4100 | R25:10K ohm | B(25/50C):4100K | |
| MF58-203□3950 | R25:20K ohm | B(25/50C):3950K | |
| MF58-233□4200 | R25:23K ohm | B(25/50C):4200K | |
| MF58-303□3950 | R25:30K ohm | B(25/50C):3950K | |
| MF58-40.27K□3979(B25/85) | R25:40.27K ohm | B(25/85C):3979K | |
| MF58-473□3950 | R25:47k ohm | B(25/50C):3950K | |
| MF58-503□3950 | R25:50K ohm | B(25/50C):3950K | |
| MF58-503□4050 | R25:50K ohm | B(25/50C):4050K | |
| MF58-98.75K□4300(B100/200) | R25:98.75KΩ | B(100/200C):4300K | R200: 0.55K ohm |
| MF58-104□3899 | R25:100K ohm | B(25/50C):3899K | |
| MF58-104□3930 | R25:100K ohm | B(25/50C):3930K | |
| MF58-104□3950 | R25:100K ohm | B(25/50C):3950K | |
| MF58-104□3990 | R25:100K ohm | B(25/50C):3990K | |
| MF58-104□4200 | R25:100K ohm | B(25/50C):4200K | |
| MF58-204□3899 | R25:200K ohm | B(25/50C):3899K | R160:3.0K ohm |
| MF58-204□4200 | R25:200K ohm | B(25/50C):4200K | |
| MF58-204□4260 | R25:200K ohm | B(25/50C):4260K | |
| MF58-504□4050 | R25:500K ohm | B(25/50C):4050K | |
| MF58-504□4260 | R25:500K ohm | B(25/50C):4260K | |
| MF58-1.388M□4500 | R25:1388K ohm | B(25/50C):4500K | R200:4.0K ohm |
| Part Number | Resistance @25C
R25 (K ohm) | Beta Value
(K) | Specific Temperature Point
Resistance Data (ohm) |
| MF51-103□3435(B25/85) | R25: 10K ohm | B(25/85C):3435K | |
| MF51-103□3950(B25/50) | R25: 10K ohm | B(25/50C):3950K | |
| MF51-49.12K□3970(B0/100) | R25: 49.12k ohm | B(0/100C):3970K | R100: 3.3K ohm |
| MF51-503□3950(B25/50) | R25: 50K ohm | B(25/50C):3950K | |
| MF51-98.63K□4300(B100/200) | R25: 98.63K ohm | B(100/200C):4300K | R200: 0.55K ohm |
| MF51-104□3950(B25/50) | R25: 100K ohm | B(25/50C):3950K | |
| MF51-104□4200(B25/50) | R25: 100K ohm | B(25/50C):4200K | |
| MF51-204□4200(B25/50) | R25: 200k ohm | B(25/50C):4200K | |
| MF51-231.5K□4537(B100/200) | R25: 231.5K ohm | B(100/200C):4537K | R200: 1.0K ohm |
| Part no. | Zero power
resistance @ 25°C | Tolerance of R25 | B value | Tolerance of B value | Max. Power Dissipation At 25°C | Dissipation Factor | Thermal Time constant | Operating temperature range |
| R25 (KΩ) | ( ±%) | (K) | (±%) | Pmax(mW) | δ(mW/°C) | τ(Sec.) | (°C) |
| MF59-5001-3200 | 5 | 1,2,3,5,10 | 25/50 | 3200 | 1,2,3,5 | 100 | ≥2 | ≤9 | -40~+300 |
| MF59-5001-3470 | 5 | 25/50 | 3470 |
| MF59-1002-3270 | 10 | 25/50 | 3270 |
| MF59-1002-3435 | 10 | 25/85 | 3435 |
| MF59-1002-3470 | 10 | 25/85 | 3470 |
| MF59-1002-3550 | 10 | 25/50 | 3550 |
| MF59-1002-3700 | 10 | 25/85 | 3700 |
| MF59-1002-3950 | 10 | 25/50 | 3950 |
| MF59-1002-3975 | 10 | 25/85 | 3975 |
| MF59-2002-3950 | 20 | 25/50 | 3950 |
| MF59-2002-4200 | 20 | 25/50 | 4200 |
| MF59-3002-3950 | 30 | 25/50 | 3950 |
| MF59-4702-3950 | 47 | 25/50 | 3950 |
| MF59-5002-3950 | 50 | 25/50 | 3950 |
| MF59-9862-4300 | 98.63 | 100/200 | 4300 |
| MF59-1003-3950 | 100 | 25/50 | 3950 |
| MF59-1003-4000 | 100 | 25/50 | 4000 |
| MF59-1003-4300 | 100 | 25/85 | 4300 |
| MF59-2003-4200 | 200 | 25/50 | 4200 |
| MF59-2003-4300 | 200 | 25/85 | 4300 |
| MF59-2003-4500 | 200 | 25/85 | 4500 |
| MF59-2313-4537 | 231 | 100/200 | 4537 |
| MF59-2003-4260 | 200 | 25/50 | 4260 |
| MF59-1004-4400 | 1000 | 25/50 | 4400 |
| MF59-1384-4400 | 1388 | 25/50 | 4400 |

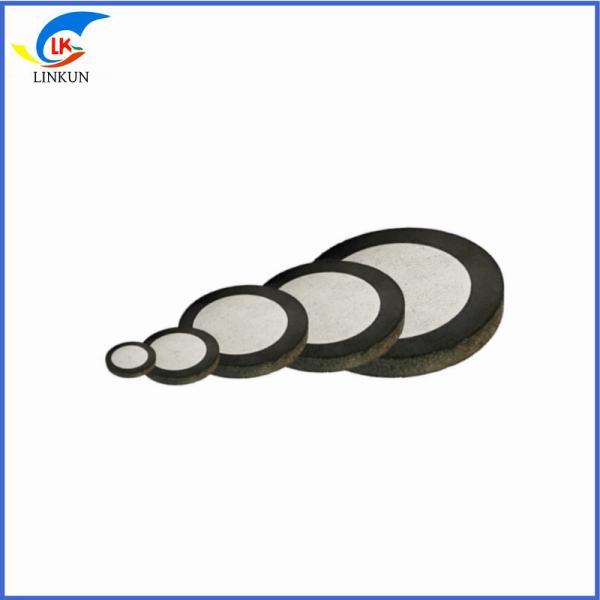

MF72 NTC Thermistor Chip
| Part No MF 72 | Max Steady State Current(A) | Approx.R of Max.Cur.(Ω ) | Operating Temp.(℃ ) | Maxsurge capacity(UF) 240V/AC |
| D5 | 0.1~1 | 0.353~18.70 | -140 ±150 | 47~100 |
| D7 | 0.2~2 | 0.283~11.65 | -140 ±150 | 68~150 |
| D9 | 0.2~4 | 0.120~30.30 | -140 ±170 | 47~220 |
| D11 | 1.2~5 | 0.095~1.656 | -140 ±170 | 150~470 |
| D13 | 1.2~7 | 0.062~2.124 | -140 ±200 | 220~560 |
| D15 | 1.8~8 | 0.075~1.652 | -140 ±200 | 330~680 |
| D20 | 5~11 | 0.018~0.212 | -140 ±200 | 680~1000 |
| D25 | 6~12 | 0.014~0.160 | -140 ±200 | 820~1200 |
