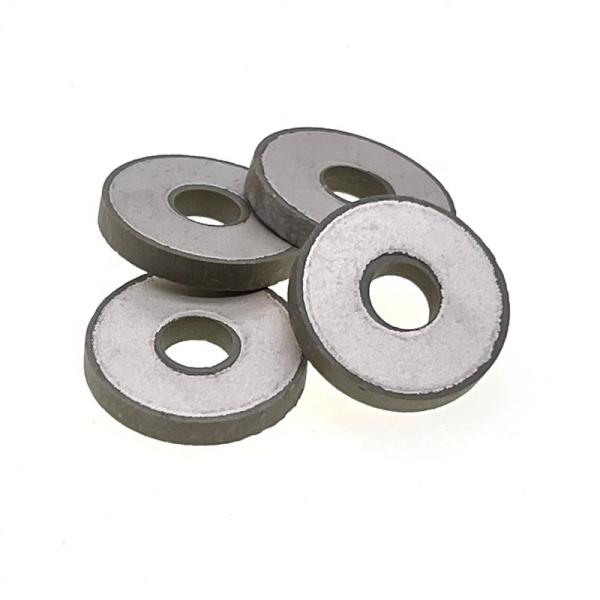

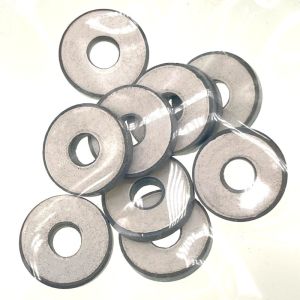

MZ4 Series PTC Heating Thermistor 16x5x2.5mm 36V 235C for Automotive Appliances

Product Categories

Dongguan Linkun Electronic Technology Co., Ltd.

Contact Now

MZ4 Series PTC Heating Thermistor 16x5x2.5mm 36V 235C for Automotive Appliances

Ask Lasest Price
Brand Name :	Linkun
Model Number :	MZ4 Heating PTC Thermistor
Price :	$0.38-0.42

Add to Cart

Product Details
Company Profile

MZ4 Series PTC Heating Thermistor 16x5x2.5mm 36V 235C for Automotive Appliances

PTC thermistor for heating

--Low voltage use type
--High voltage use type

Product Description

Use

• Automotive industry ◆ Cabin heating system for electric vehicles ◆ Diesel preheating and filter heating ◆ Heating of crankcase exhaust system ◆ Heating of windshield washer nozzles ◆ Constant temperature of electric vehicle battery pack • Household industry ◆ Heating of washing machine door locks and bimetallic strips of thermostats ◆ Warm air heating ◆ Heating of mosquito repellents and perfume vaporizers ◆ Heating of medical equipment ◆ Oil preheating of fuel burners ◆ Heating of thermal actuators • Others ◆ Heating of fiber optic communication distributors ◆ Heating of camera lenses ◆ Heating of sol guns and plastic welding

Features

◆ Excellent life characteristics, ensuring longer service life than nickel-chromium heaters under normal operating conditions ◆ The heater element itself has temperature regulation and self-control functions ◆ Interlocking or available travel displacement with bimetallic strips ◆ Easy to achieve compact and lightweight component design and easy installation ◆ No fire risk

Structure and parameters

Model and parameters

◆ Low voltage use

Product number	Curie temperature	Surface temperature	25°C zero power resistor	Operating Voltage	Maximum voltage	size
Product number		Tc(℃)	Ts(±10℃)	(Ω)	Vr(V)	Vmax(V)	D/L(mm)	d/W(mm)	T(mm)
MZ4X1Φ190415-2R0□9/40	0	40	2	9	18	Φ19.0	Φ4.3	1.5
MZ4P4S1210-9R0□V12/70	40	70	9	12	30	Φ12.0	-	1
MZ4P6S1210-9R0□V12/80	60	80	9	12	30	Φ12.0	-	1
MZ4P8S1210-9R0□V12/95	80	95	9	12	30	Φ12.0	-	1
MZ4P9S0825-360□V24/115	90	115	36	24	30	Φ8.5	-	2.5
MZ4X0S0815-180□V24/120	100	120	18	24	30	Φ8.0	-	1.5
MZ4X1Φ160415□12/120	110	120	2.4	12	24	Φ16.0	Φ4.3	1.5
MZ4X0S0815-100□V24/125	100	125	10	24	30	Φ8.0	-	1.5
MZ4X2S1210-9R0□V12/130	120	130	9	12	30	Φ12.0	-	1
MZ4X3S1215-3R0□V12/140	130	140	3	12	14	Φ12.0	-	1.5
MZ4X3S1215-1R5□V12/145	135	145	1.55	13.5	28	Φ12.0	-	1.5
MZ4X5S1216-2R0□V13/160	150	160	2	13.5	28	Φ12.0	-	1.6
MZ4X5S1210-9R0□V12/165	155	165	9	12	30	Φ12.0	-	1
MZ4X8S1210-9R0□V12/185	180	185	9	12	30	Φ12.0	-	1
MZ4X9S0820-100□V18/215	195	215	100	18	36	Φ8.0	-	2
MZ4Y4S1516-4R5□V13/250	240	250	4.5	13.5	24	Φ14.7	-	1.65
MZ4P8S350614-3R2□V12/110	80	110	3.2	12	20	35	6.2	1.4
MZ4X3S221225-1R8□V14/145	135	145	1.88	14	18	22	12	2.5
MZ4X3S341524-3R1□V24/145	135	145	3.13	24	36	34	15	2.4
MZ4X2S350614-3R2□V12/145	120	145	3.2	12	20	35	6.2	1.4
MZ4X4S281216-1R6□V14/150	140	150	1.65	13.5	28	28	12	1.65
MZ4X4S360820-5R0□V24/150	140	150	5	24	36	36	8	2
MZ4X5S300610-4R5□V14/160	150	160	4.5	13.5	24	30	5.8	1
MZ4X5S160416-1R5□V12/165	155	165	1.5	12	24	16.5	4.5	1.65
MZ4X6S341524-1R7□V12/170	160	170	1.7	12	24	34	15	2.4
MZ4X6S300610-200□V48/170	160	170	20	48	60	30	5.8	1
MZ4X7S300610-2R3□V12/180	170	180	2.35	12	24	30	5.8	1
MZ4X7S300610-3R0□V12/180	170	180	3	12	24	30	5.8	1
MZ4X6S350614-3R2□V12/180	160	180	3.2	12	20	35	6.2	1.4
MZ4X8S350614-3R2□V12/200	180	200	3.2	12	20	35	6.2	1.4
MZ4Y2S350614-6R4□V12/230	220	230	6.4	12	20	35	6.2	1.4

Notes:

1.□ represents the deviation range of R25 M: ±20%　X: ±25%　N: ±30%　S: Special 2. The operating voltage can be selected from 1.5-68V, and the surface temperature can be selected from 35-350℃ 3. Other specifications or parameters can be customized

◆High voltage use

Product number	Curie temperature	Surface temperature	25°C zero power resistor	Operating Voltage	Maximum voltage	size
Product number		Tc(℃)	Ts(±10℃)	(Ω)	Vr(V)	Vmax(V)	D/L(mm)	d/W(mm)	T(mm)
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8	-	2
MZ4P9S1220-122□V230/125	90	125	1200	230	270	Φ11.8	-	2
MZ4X2S1325-102□V110/135	120	135	1000	110	140	Φ13.0	-	2.5
MZ4X1S0803-422□V230/135	110	135	4200	230	270	Φ8.0	-	3
MZ4X1S1220-122□V230/140	110	140	1200	230	270	Φ11.8	-	2
MZ4X3S1220-122□V230/160	130	160	1200	230	270	Φ11.8	-	2
MZ4X5S0803-422□V230/170	150	170	4200	230	270	Φ8.0	-	3
MZ4X5S1220-122□V230/180	150	180	1200	230	270	Φ11.8	-	2
MZ4X8S0803-422□V230/200	180	200	4200	230	270	Φ8.0	-	3
MZ4Y2S0803-602□V230/235	220	235	6000	230	270	Φ8.0	-	3
MZ4Y3S0803-102□V230/240	230	240	1000	230	270	Φ8.0	-	3
MZ4P5S350620-701□V230/100	50	100	700	230	270	35	6.2	2
MZ4P7S350620-701□V230/115	70	115	700	230	270	35	6.2	2
MZ4X1S350620-701□V230/145	110	145	700	230	270	35	6.2	2
MZ4X3S350620-701□V230/160	130	160	700	230	270	35	6.2	2
MZ4X6S241520-302□V220/170	160	170	3000	220	480	24	15	2
MZ4X6S241524-152□V360/170	160	170	1500	360	420	24	15	2.4
MZ4X5S350620-701□V230/180	150	180	700	230	270	35	6.2	2
MZ4X5S281221-302□V400/190	155	190	3000	400	600	28.8	12.4	2.1
MZ4X8S350620-701□V230/205	180	205	700	230	270	35	6.2	2
MZ4X9S291021-402□V350/215	190	215	4000	350	800	28.8	9.8	2.1
MZ4X9S393126-151□V600/220	195	220	150	600	750	39.2	30.8	2.6
MZ4Y2S393119-871□V350/240	220	240	875	350	450	39.2	30.8	1.9
MZ4Y2S393125-871□V540/240	220	240	875	540	600	39.2	30.8	2.5
MZ4Y2S350620-102□V230/240	220	240	1000	230	270	35	6.2	2
MZ4Y7S350620-132□V230/280	270	280	1300	230	270	35	6.2	2

Notes:

1.□ represents the deviation range of R25 M: ±20%　X: ±25%　N: ±30%　S: Special 2. The working voltage can be selected from 100-1000V, and the surface temperature can be selected from 35-350℃ 3. Other specifications or parameters can be customized

PTC thermistor for motor starting
--Chip type
--Shell type

Chip type MZ9 series
Product Description

Use

◆ Auxiliary starting of compressors such as refrigerators, air conditioners and heat pumps ◆ Auxiliary starting of single-phase induction motors ◆ Inrush current suppression of switching power supplies, inverters, inverter air conditioner main control boards, micromotor controllers, etc.

★Features

◆ Reliable metal electrode: Ni (chemical plating or sputtering) + Ag (screen printing) ◆ Sturdy electrode suitable for pressure clamping installation to ensure long life ◆ No electrical noise, easy to install ◆ Select chip size and Curie point to provide the best impact current and action time for startup ◆ High voltage and impact current resistance ◆ Safety approval: UL&CUL, VDE, CQC ◆ Compliant with RoHS directive

Model and parameters

Chip type (MZ9 series)

Product number	25°C zero power resistor	Maximum voltage	Maximum current	Destruction voltage	Curie temperature	Diameter x Thickness
Product number		R25(Ω)	Vmax(V)	Imax(A)	VBD(V)	Tc(°C)	(mm)
MZ9-3R3□X3S1625	3.3	160	12	320	135	16x2.5
MZ9-3R9□X3S1625	3.9	180	12	360
MZ9-4R7□X3S1625	4.7	180	12	420
MZ9-5R0□X0S1625	5	200	12	480	105
MZ9-5R5□X2S1625	5.5	200	12	450	120
MZ9-6R8□X0S1625	6.8	200	10	480	105
MZ9-6R8□X3S1625	6.8	200	10	450	135
MZ9-10R□X0S1625	10	200	10	500	105
MZ9-10R□X3S1625	10	200	8	500	135
MZ9-15R□X3S1625	15	350	8	700			135
MZ9-22R□X3S1625	22	350	8	700
MZ9-33R□X3S1625	33	355	6	720
MZ9-47R□X3S1625	47	400	5	720
MZ9-68R□X3S1625	68	450	4	800
MZ9-5R0□X2S1725	5	200	12	450	120	17.5x2.5
MZ9-6R8□X2S1725	6.8	200	10	500
MZ9-10R□X2S1725	10	200	10	550
MZ9-20R□X2S1725	20	320	8	650
MZ9-3R3□X2S2025	3.3	160	12	350	135 or 120	20x2.5
MZ9-3R9□X2S2025	3.9	180	12	400
MZ9-4R7□X3S2025	4.7	180	12	420
MZ9-5R6□X3S2025	5.6	180	12	450
MZ9-6R8□X3S2025	6.8	200	10	500
MZ9-10R□X3S2025	10	230	9	550
MZ9-12R□X3S2025	12	250	8.5	600
MZ9-15R□X3S2025	15	350	8	700
MZ9-22R□X3S2025	22	350	8	720
MZ9-33R□X3S2025	33	355	6	750
MZ9-47R□X3S2025	47	400	5	800
MZ9-68R□X3S2025	68	450	5	860
MZ9-3R9□X2S2032	3.9	180	16	350	120	20x3.2
MZ9-12R□X2S2032	12	350	8	700
MZ9-15R□X2S2032	15	350	8	750
MZ9-30R□X2S2032	30	450	7	800
MZ9-33R□X2S2032	33	385	8	750
MZ9-40R□X2S2032	40	450	8	800
MZ9-25R□X2S2050	25	400	9	800	120	20x5.0
MZ9-38R□X2S2050	38	400	9	800
MZ9-50R□X2S2050	50	410	8	800
MZ9-75R□X2S2050	75	410	6	800

Notes:

1.□ represents the deviation range of R25 M: ±20%　X: ±25%　N: ±30%　S: Special 2. Other specifications or parameters can be customized

Shell type (MZ92D series)

•Structure and size

A-type shell structure

B-type shell structure

Model and parameters

Product number	25°C zero power resistor	Maximum voltage	Maximum current	Power consumption
Product number		(Ω)	(Vac)	(A)	(W)
MZ92D-3R9□	3.9	160	12	4
MZ92D-4R7□	4.7	180	12	3.5
MZ92D-5R0□	5	180	12	3.5
MZ92D-6R8□	6.8	200	15	3.5
MZ92D-10R□	10	200	15	3.5
MZ92D-15R□	15	350	12	3.2
MZ92D-22R□	22	350	15	3.2
MZ92D-25R□	25	400	12	3.2
MZ92D-30R□	30	450	12	3.2
MZ92D-33R□	33	450	12	3.2
MZ92D-38R□	38	450	12	3.2
MZ92D-40R□	40	450	10	3.2
MZ92D-47R□	47	450	12	3.2
MZ92D-50R□	50	500	10	3.2
MZ92D-68R□	68	500	9	3.2
MZ92D-101R□	100	500	9	3.2
