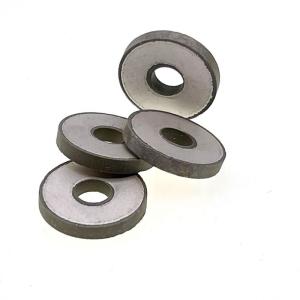

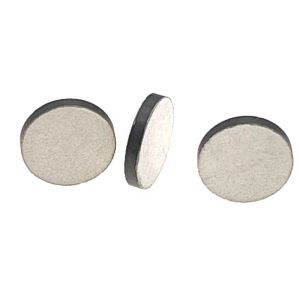

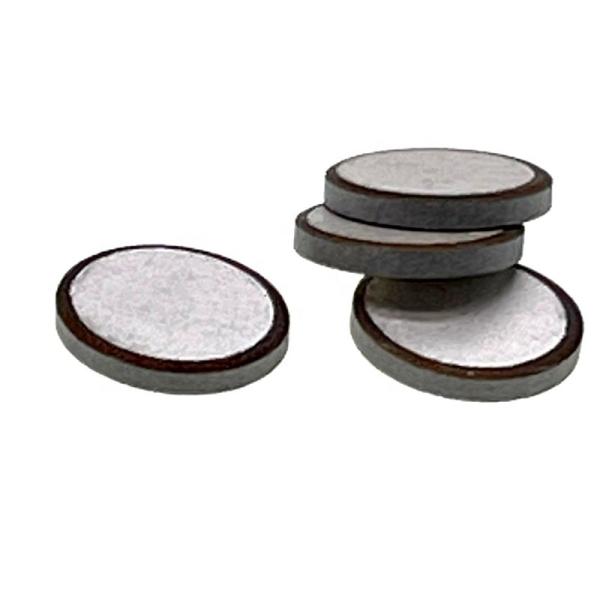

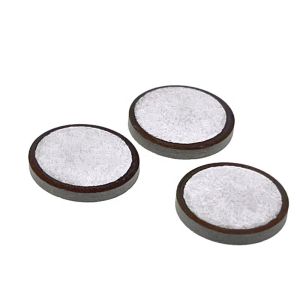

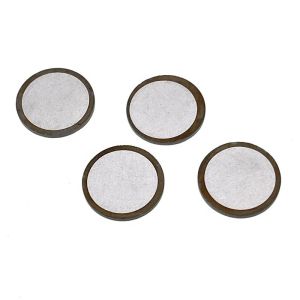

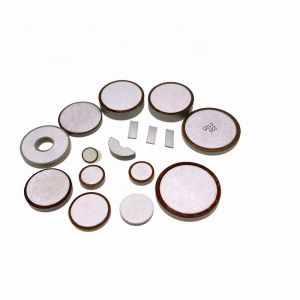

13mm PTC Heating Chip 6-12 Ohm 150C Ceramic Element

PTC thermistor for heating

--Low voltage use type
--High voltage use type

Product Description

Use

• Automotive industry ◆ Cabin heating system for electric vehicles ◆ Diesel preheating and filter heating ◆ Heating of crankcase exhaust system ◆ Heating of windshield washer nozzles ◆ Constant temperature of electric vehicle battery pack • Household industry ◆ Heating of washing machine door locks and bimetallic strips of thermostats ◆ Warm air heating ◆ Heating of mosquito repellents and perfume vaporizers ◆ Heating of medical equipment ◆ Oil preheating of fuel burners ◆ Heating of thermal actuators • Others ◆ Heating of fiber optic communication distributors ◆ Heating of camera lenses ◆ Heating of sol guns and plastic welding

Features

◆ Excellent life characteristics, ensuring longer service life than nickel-chromium heaters under normal operating conditions ◆ The heater element itself has temperature regulation and self-control functions ◆ Interlocking or available travel displacement with bimetallic strips ◆ Easy to achieve compact and lightweight component design and easy installation ◆ No fire risk

Structure and parameters

Model and parameters

◆ Low voltage use

Product number	Curie temperature	Surface temperature	25°C zero power resistor	Operating Voltage	Maximum voltage	size
Product number		Tc(℃)	Ts(±10℃)	(Ω)	Vr(V)	Vmax(V)	D/L(mm)	d/W(mm)	T(mm)
MZ4X1Φ190415-2R0□9/40	0	40	2	9	18	Φ19.0	Φ4.3	1.5
MZ4P4S1210-9R0□V12/70	40	70	9	12	30	Φ12.0	-	1
MZ4P6S1210-9R0□V12/80	60	80	9	12	30	Φ12.0	-	1
MZ4P8S1210-9R0□V12/95	80	95	9	12	30	Φ12.0	-	1
MZ4P9S0825-360□V24/115	90	115	36	24	30	Φ8.5	-	2.5
MZ4X0S0815-180□V24/120	100	120	18	24	30	Φ8.0	-	1.5
MZ4X1Φ160415□12/120	110	120	2.4	12	24	Φ16.0	Φ4.3	1.5
MZ4X0S0815-100□V24/125	100	125	10	24	30	Φ8.0	-	1.5
MZ4X2S1210-9R0□V12/130	120	130	9	12	30	Φ12.0	-	1
MZ4X3S1215-3R0□V12/140	130	140	3	12	14	Φ12.0	-	1.5
MZ4X3S1215-1R5□V12/145	135	145	1.55	13.5	28	Φ12.0	-	1.5
MZ4X5S1216-2R0□V13/160	150	160	2	13.5	28	Φ12.0	-	1.6
MZ4X5S1210-9R0□V12/165	155	165	9	12	30	Φ12.0	-	1
MZ4X8S1210-9R0□V12/185	180	185	9	12	30	Φ12.0	-	1
MZ4X9S0820-100□V18/215	195	215	100	18	36	Φ8.0	-	2
MZ4Y4S1516-4R5□V13/250	240	250	4.5	13.5	24	Φ14.7	-	1.65
MZ4P8S350614-3R2□V12/110	80	110	3.2	12	20	35	6.2	1.4
MZ4X3S221225-1R8□V14/145	135	145	1.88	14	18	22	12	2.5
MZ4X3S341524-3R1□V24/145	135	145	3.13	24	36	34	15	2.4
MZ4X2S350614-3R2□V12/145	120	145	3.2	12	20	35	6.2	1.4
MZ4X4S281216-1R6□V14/150	140	150	1.65	13.5	28	28	12	1.65
MZ4X4S360820-5R0□V24/150	140	150	5	24	36	36	8	2
MZ4X5S300610-4R5□V14/160	150	160	4.5	13.5	24	30	5.8	1
MZ4X5S160416-1R5□V12/165	155	165	1.5	12	24	16.5	4.5	1.65
MZ4X6S341524-1R7□V12/170	160	170	1.7	12	24	34	15	2.4
MZ4X6S300610-200□V48/170	160	170	20	48	60	30	5.8	1
MZ4X7S300610-2R3□V12/180	170	180	2.35	12	24	30	5.8	1
MZ4X7S300610-3R0□V12/180	170	180	3	12	24	30	5.8	1
MZ4X6S350614-3R2□V12/180	160	180	3.2	12	20	35	6.2	1.4
MZ4X8S350614-3R2□V12/200	180	200	3.2	12	20	35	6.2	1.4
MZ4Y2S350614-6R4□V12/230	220	230	6.4	12	20	35	6.2	1.4

Notes:

1.□ represents the deviation range of R25 M: ±20%　X: ±25%　N: ±30%　S: Special 2. The operating voltage can be selected from 1.5-68V, and the surface temperature can be selected from 35-350℃ 3. Other specifications or parameters can be customized

◆High voltage use

Product number	Curie temperature	Surface temperature	25°C zero power resistor	Operating Voltage	Maximum voltage	size
Product number		Tc(℃)	Ts(±10℃)	(Ω)	Vr(V)	Vmax(V)	D/L(mm)	d/W(mm)	T(mm)
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8	-	2
MZ4P9S1220-122□V230/125	90	125	1200	230	270	Φ11.8	-	2
MZ4X2S1325-102□V110/135	120	135	1000	110	140	Φ13.0	-	2.5
MZ4X1S0803-422□V230/135	110	135	4200	230	270	Φ8.0	-	3
MZ4X1S1220-122□V230/140	110	140	1200	230	270	Φ11.8	-	2
MZ4X3S1220-122□V230/160	130	160	1200	230	270	Φ11.8	-	2
MZ4X5S0803-422□V230/170	150	170	4200	230	270	Φ8.0	-	3
MZ4X5S1220-122□V230/180	150	180	1200	230	270	Φ11.8	-	2
MZ4X8S0803-422□V230/200	180	200	4200	230	270	Φ8.0	-	3
MZ4Y2S0803-602□V230/235	220	235	6000	230	270	Φ8.0	-	3
MZ4Y3S0803-102□V230/240	230	240	1000	230	270	Φ8.0	-	3
MZ4P5S350620-701□V230/100	50	100	700	230	270	35	6.2	2
MZ4P7S350620-701□V230/115	70	115	700	230	270	35	6.2	2
MZ4X1S350620-701□V230/145	110	145	700	230	270	35	6.2	2
MZ4X3S350620-701□V230/160	130	160	700	230	270	35	6.2	2
MZ4X6S241520-302□V220/170	160	170	3000	220	480	24	15	2
MZ4X6S241524-152□V360/170	160	170	1500	360	420	24	15	2.4
MZ4X5S350620-701□V230/180	150	180	700	230	270	35	6.2	2
MZ4X5S281221-302□V400/190	155	190	3000	400	600	28.8	12.4	2.1
MZ4X8S350620-701□V230/205	180	205	700	230	270	35	6.2	2
MZ4X9S291021-402□V350/215	190	215	4000	350	800	28.8	9.8	2.1
MZ4X9S393126-151□V600/220	195	220	150	600	750	39.2	30.8	2.6
MZ4Y2S393119-871□V350/240	220	240	875	350	450	39.2	30.8	1.9
MZ4Y2S393125-871□V540/240	220	240	875	540	600	39.2	30.8	2.5
MZ4Y2S350620-102□V230/240	220	240	1000	230	270	35	6.2	2
MZ4Y7S350620-132□V230/280	270	280	1300	230	270	35	6.2	2

Notes:

1.□ represents the deviation range of R25 M: ±20%　X: ±25%　N: ±30%　S: Special 2. The working voltage can be selected from 100-1000V, and the surface temperature can be selected from 35-350℃ 3. Other specifications or parameters can be customized

PTC thermistor for motor starting
--Chip type
--Shell type

Chip type MZ9 series
Product Description

Use

◆ Auxiliary starting of compressors such as refrigerators, air conditioners and heat pumps ◆ Auxiliary starting of single-phase induction motors ◆ Inrush current suppression of switching power supplies, inverters, inverter air conditioner main control boards, micromotor controllers, etc.

★Features

◆ Reliable metal electrode: Ni (chemical plating or sputtering) + Ag (screen printing) ◆ Sturdy electrode suitable for pressure clamping installation to ensure long life ◆ No electrical noise, easy to install ◆ Select chip size and Curie point to provide the best impact current and action time for startup ◆ High voltage and impact current resistance ◆ Safety approval: UL&CUL, VDE, CQC ◆ Compliant with RoHS directive

Model and parameters

Chip type (MZ9 series)

Product number	25°C zero power resistor	Maximum voltage	Maximum current	Destruction voltage	Curie temperature	Diameter x Thickness
Product number		R25(Ω)	Vmax(V)	Imax(A)	VBD(V)	Tc(°C)	(mm)
MZ9-3R3□X3S1625	3.3	160	12	320	135	16x2.5
MZ9-3R9□X3S1625	3.9	180	12	360
MZ9-4R7□X3S1625	4.7	180	12	420
MZ9-5R0□X0S1625	5	200	12	480	105
MZ9-5R5□X2S1625	5.5	200	12	450	120
MZ9-6R8□X0S1625	6.8	200	10	480	105
MZ9-6R8□X3S1625	6.8	200	10	450	135
MZ9-10R□X0S1625	10	200	10	500	105
MZ9-10R□X3S1625	10	200	8	500	135
MZ9-15R□X3S1625	15	350	8	700			135
MZ9-22R□X3S1625	22	350	8	700
MZ9-33R□X3S1625	33	355	6	720
MZ9-47R□X3S1625	47	400	5	720
MZ9-68R□X3S1625	68	450	4	800
MZ9-5R0□X2S1725	5	200	12	450	120	17.5x2.5
MZ9-6R8□X2S1725	6.8	200	10	500
MZ9-10R□X2S1725	10	200	10	550
MZ9-20R□X2S1725	20	320	8	650
MZ9-3R3□X2S2025	3.3	160	12	350	135 or 120	20x2.5
MZ9-3R9□X2S2025	3.9	180	12	400
MZ9-4R7□X3S2025	4.7	180	12	420
MZ9-5R6□X3S2025	5.6	180	12	450
MZ9-6R8□X3S2025	6.8	200	10	500
MZ9-10R□X3S2025	10	230	9	550
MZ9-12R□X3S2025	12	250	8.5	600
MZ9-15R□X3S2025	15	350	8	700
MZ9-22R□X3S2025	22	350	8	720
MZ9-33R□X3S2025	33	355	6	750
MZ9-47R□X3S2025	47	400	5	800
MZ9-68R□X3S2025	68	450	5	860
MZ9-3R9□X2S2032	3.9	180	16	350	120	20x3.2
MZ9-12R□X2S2032	12	350	8	700
MZ9-15R□X2S2032	15	350	8	750
MZ9-30R□X2S2032	30	450	7	800
MZ9-33R□X2S2032	33	385	8	750
MZ9-40R□X2S2032	40	450	8	800
MZ9-25R□X2S2050	25	400	9	800	120	20x5.0
MZ9-38R□X2S2050	38	400	9	800
MZ9-50R□X2S2050	50	410	8	800
MZ9-75R□X2S2050	75	410	6	800

Notes:

1.□ represents the deviation range of R25 M: ±20%　X: ±25%　N: ±30%　S: Special 2. Other specifications or parameters can be customized

Shell type (MZ92D series)

•Structure and size

A-type shell structure

B-type shell structure

Model and parameters

Product number	25°C zero power resistor	Maximum voltage	Maximum current	Power consumption
Product number		(Ω)	(Vac)	(A)	(W)
MZ92D-3R9□	3.9	160	12	4
MZ92D-4R7□	4.7	180	12	3.5
MZ92D-5R0□	5	180	12	3.5
MZ92D-6R8□	6.8	200	15	3.5
MZ92D-10R□	10	200	15	3.5
MZ92D-15R□	15	350	12	3.2
MZ92D-22R□	22	350	15	3.2
MZ92D-25R□	25	400	12	3.2
MZ92D-30R□	30	450	12	3.2
MZ92D-33R□	33	450	12	3.2
MZ92D-38R□	38	450	12	3.2
MZ92D-40R□	40	450	10	3.2
MZ92D-47R□	47	450	12	3.2
MZ92D-50R□	50	500	10	3.2
MZ92D-68R□	68	500	9	3.2
MZ92D-101R□	100	500	9	3.2
