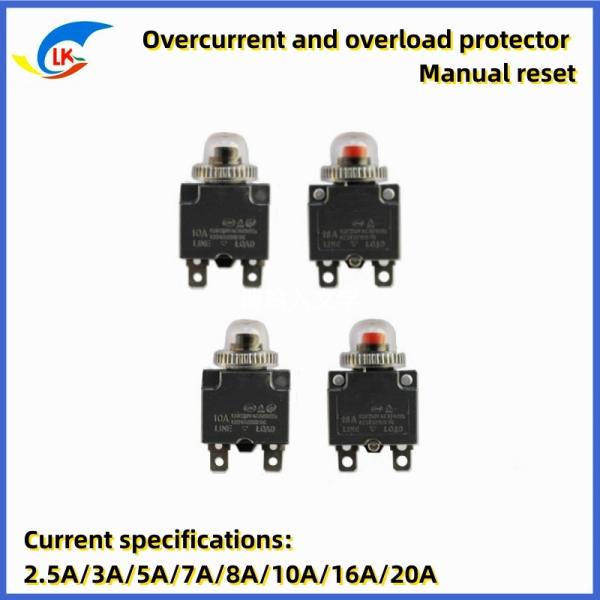

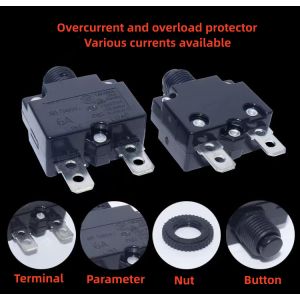

Factory Direct Sales Overcurrent Protector Overload Switch 10A Current Protector KYB8 Current Overload Protector Waterpr

Product description:
current overload protector,
Rated current: 3A-50A;
Rated voltage: 125/250Vac 50Vdc 50-60Hz;
Disconnect capacity: 125Vac × 1,000Amp 250Vac × 200Amp.
Insulation withstand voltage test: 1,500Vac/minute.
Reset switch overload capacity: 10 times the current. Minimum voltage: less than 0.25V.
Insulation resistance test: greater than 500Vdc×100 MΩ.
Line terminal temperature: 100% current test at 25℃, the temperature rise is less than 25℃.
Contact life test: 125Vac × 150% current test more than 500 times.
Standard test (at 25℃)
100% current test: no tripping
150% current test: trip within 1 hour
200% current test: trip within 40 seconds
300% current test: trip within 10 seconds,
It has UL, CSA, VDE certification, and complies with the EU RoHS environmental directive.
Reply method: manual reset/automatic reset
​
Overload Protector is the perfect choice for protecting your electrical appliances from overload and short circuit. This product features a hard silver case and plastic use, with a maximum current of 10A. It is designed with a black+red color and weighs only 0.0025kg. Moreover, it also has thermal protector and small current protector, making it ideal for protecting your electrical appliances from overload and short circuit. Its 16A red piston makes it highly durable and reliable. Get this Overload Protector for maximum safety and security of your electrical appliances.
