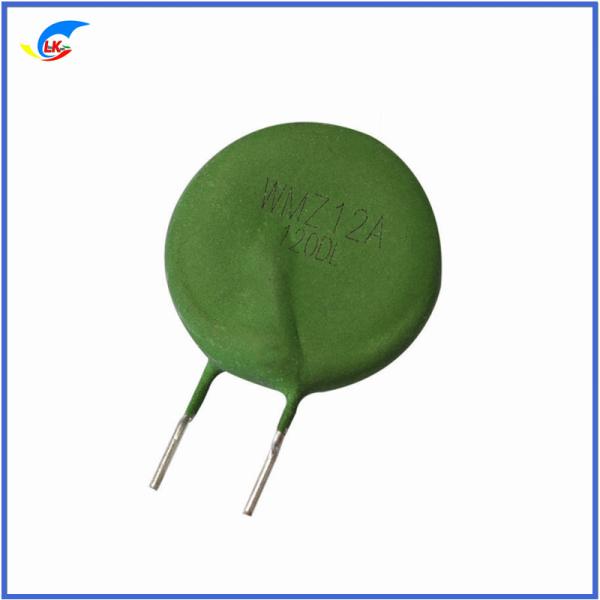

    WMZ12A Series Durable Industrial PTC Thermistor For Overcurrent Protection. High Stability Suitable For Multimeters, Ele

    Ask Lasest Price
    Brand Name : linkun
    Model Number : PTC thermistor for overcurrent protection
    Certification : CE / ROHS / UL / TUV / SGS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 24 million per year
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    WMZ12A Series Durable Industrial PTC Thermistor For Overcurrent Protection. High Stability Suitable For Multimeters, Ele

    High Thermal Stability PTC Thermistor For Overcurrent Protection Short Current Protection



    Application

    ◆ Over current protection in:
    -Industrial electronics
    -Consumer electronics
    -Electronic data processing
    ◆ Short current protection

    Features

    ◆ Short response time for rapid protection
    ◆ Automatic resetting once overcurrent is removed
    ◆ Leaded parts withstand mechanical stresses and vibration
    ◆ High thermal stability

    Structures and Dimensions​



    Common models of LKMZB series overcurrent protection PTC thermistor

    ModelCurieResistanceActionNo actionMaximumNaximumDimensions
    temperaturetypical valueelectric currentelectric currentelectric currentWork
     @25℃@60℃@25℃Voltage
    Tc(℃)Rn(Ω)It(mA)Ih(mA)Imax(A)Vmax(V)DmaxHmax
    LKMZB-03I202-302R85±725001630.24204.05
    LKMZB-03I102-202R85±715001840.24204.05
    LKMZB04I801-122R85±710002560.24204.55
    LKMZB-04I501-801R85±76502870.24204.55
    LKMZB-04I301-501R85±74003280.24204.55
    LKMZB-04M101-202R105±715002560.24204.55
    LKMZB-04M801-122R105±710002880.24204.55
    LKMZB-04M501-801R105±765030100.24204.55
    LKMZB-06S102-202R115±7150030100.34206.55
    LKMZB-06S801-122R115±7100035120.34206.55
    LKMZB-06S601-901R115±775042140.34206.55
    LKMZB-06S501-801R115±765045150.34206.55
    LKMZB-06S401-601R115±750050160.34206.55
    LKMZB-06S201-401R115±730060200.34206.55
    LKMZB-06S151-251R115±720075250.32656.55
    LKMZB-06S101-201R115±715080280.32656.55
    LKMZB-06S900-151R115±712090300.32656.55
    LKMZB-06M600-100R105±780100320.32656.55
    LKMZB-06M400-800R105±760120350.32656.55
    LKMZB-08S301-501R115±740080200.842085
    LKMZB-08S201-301R115±725080250.842085
    LKMZB-08S151-251R115±7200100280.842085
    LKMZB-08S900-151R115±7120120350.842085
    LKMZB-08S600-101R115±780140400.842085
    LKMZB-08S400-800R115±760160500.826585
    LKMZB-08S300-500R115±740180600.826585
    LKMZB-10S300-500R115±74020070326595
    LKMZB-10S200-300R115±72525080326595
    LKMZB-13S200-300R115±7253001004265135
    LKMZB-13S100-200R115±7153601204265135
    LKMZB-16S200-300R115±7253601208265165
    LKMZB-16S100-200R115±7154201408265165
    LKMZB-16S080-150R115±7124201608265165

    Note: Various types of products can be customized according to customer requirements, and the maximum non-operating current value can reach 400mA@60℃.


    Electrical Specifications

    Order NumberNon-Operating CurrentTrip CurrentRated VoltageMax. CurrentResistance At 25℃Curie Temp.Dimensions (mm)
    IN(mA)IT(mA)Vmax(V)Imax(A)R25(Ω)TC(℃)DT
    MZ23X2S0720-100□#80230602101207.72
    MZ23X0S0720-200□#90280603201007.72
    MZ23X3S0825-500□#501302301.25013052.5
    MZ23X2S0825-650□#5511023016512082.5
    MZ23X3S0825-650□#5513023026513082.5
    MZ23X3S0825-350□#8018023013513062.5
    MZ23X3S0825-250□#12525023012513082.5


    Note:

    1.is the resistance tolerance M:±20% X:±25% N:±30% S: Special
    2. is the internal control code
    3.The F value can be selected for 5mm, 7.5mm, 10mm
    4.The L value canbe selected for 3mm, 20mm, 25mm, 35mm
    5.The d value can be selected for 0.6mm, 0.8mm, 1.0mm
    6.Other type are available on request
